About GW6 Urinals

Key Benefits

  • replaceable valve core typically lasts for at least 6 months, often as long as a year
  • no sealant chemicals required
  • dual valve technology for added protection against odours
  • fast drainage
  • no special tools required

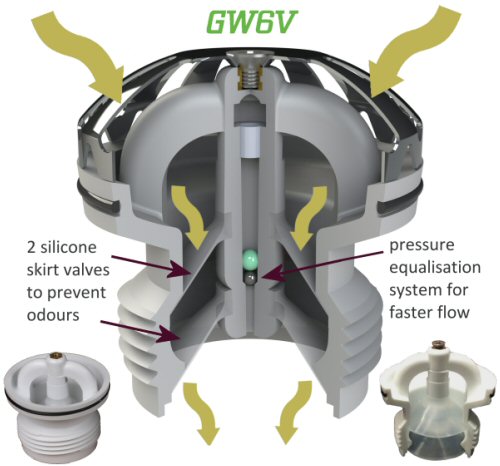

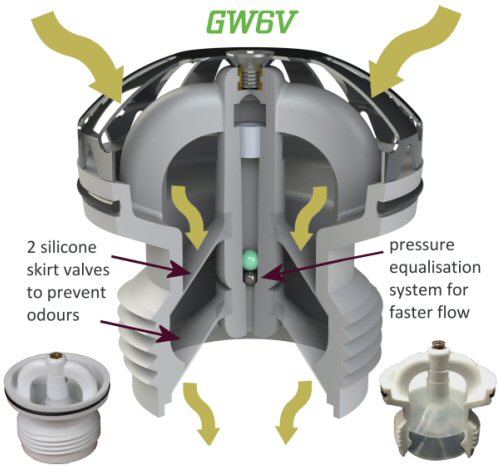

About the GW6 valve core - how odours are prevented

The replaceable core (product: GW6V) of GW6 urinals  feature:

  • dual silicone skirts to prevent odours and backflow
  • skirt design allows for hair and other small debris to pass through easily, thus maintaining the seal
  • pressure equalisation mechanism allows for faster drainage (from Dec'16)
  • simple screw fitting, only a crosshead screwdriver required
  • easy to clean with water or cleaning chemicals
  • low frequency replacement cycle of a relatively small component, therefore less impact on the environment

How to prevent blockages in waterless urinal waste runs

Gentworks recommends dosing/sluicing urinals fitted with the GW6 valve, approximately once every 2 to 4 weeks, with a solution of Bactericidal Cleaner  mixed with warm water from the washroom hot tap,

All urinals are prone to blockages, whether waterless or not.  The advantage of waterless urinals over flushed urinals is that there is no limescale from water to combine with urine to form a hard scale. Nevertheless, uric acid crystals and sludge can form, particularly where debris and hair has fallen into the waste pipes and the flow of urine alone has not been able to flush such obstructions away to the main drain. In a washroom with new waste pipes configured perfectly, the flow of urine itself can be sufficient to keep the pipework clear. However, a simple act of preventative maintenance such as dosing/sluicing with Bactericidal Cleaner dramatically reduces the chance of a blockage in all cases.

Gentworks recommends regular dosing/sluicing for all our waterless urinal systems that do not use a liquid seal. For waterless urinals with a liquid seal, sluicing could break the seal and is therefore only recommended during servicing or a cartridge change.
